B & G
B&G Nemesis Hub
B&G Nemesis Hub
Regular price
$514.00 USD
Regular price
Sale price
$514.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

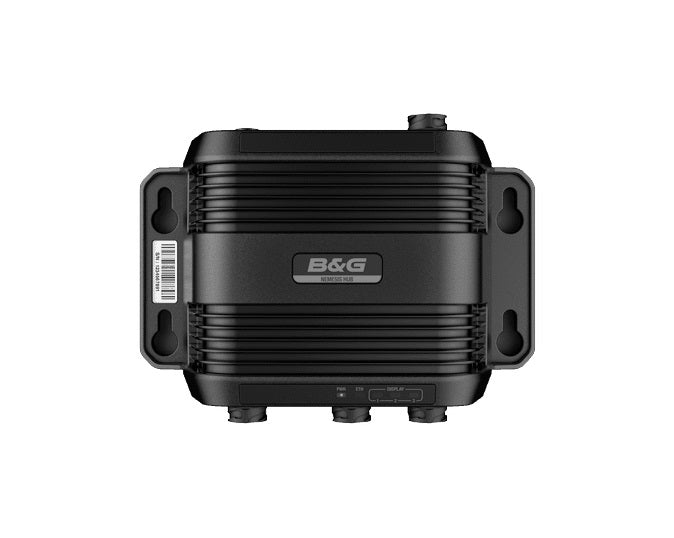

B&G Nemesis™ Hub
Model: 000-15683-001- Connect up to 3 Nemesis™ displays easily when installed in close proximity to each other (e.g. mast or at helm).
- One simple interconnect cable (0.6m in length) required per display (1 included). Choices from 5m to 30m main Power/Ethernet cable options available.
B&G Nemesis™ Hub allows compact and straightforward connection of up to 3 Nemesis™ displays at a key location (mast, helm etc) with a single Power/Ethernet cable run, and a simple interconnect cable from the hub to each display.
Specifications| Environmental | |
| Storage temperature | -15°C to +55°C (-5°F to 131°F) |
| Operating temperature | -20°C to +60°C (-4°F to 140°F) |
| Waterproof rating | IPX 6 and 7 |
| Electrical | |
| Power supply | 12/24 V DC |
| Operating voltage | 12/24 V DC (10 - 31.2 V DC (min - max) |
| Power consumption | 2W plus max 60W distributed to connected displays. |
| Fuse rating | 9 Amps |
| Physical | |
| 240g (0.44 lbs) | 240g (0.44 lbs) |
| Interface/Connectivity | |
| Ethernet/Power | 1x 8-pin connector |
| Display | 3x 8-pin Ethernet connectors |
| Ground | 1x M4 Grounding |
What's in the Box:
- Nemesis Hub
- Nemesis™ Hub Power/Ethernet Interconnect Cable
