Blue Sea Systems

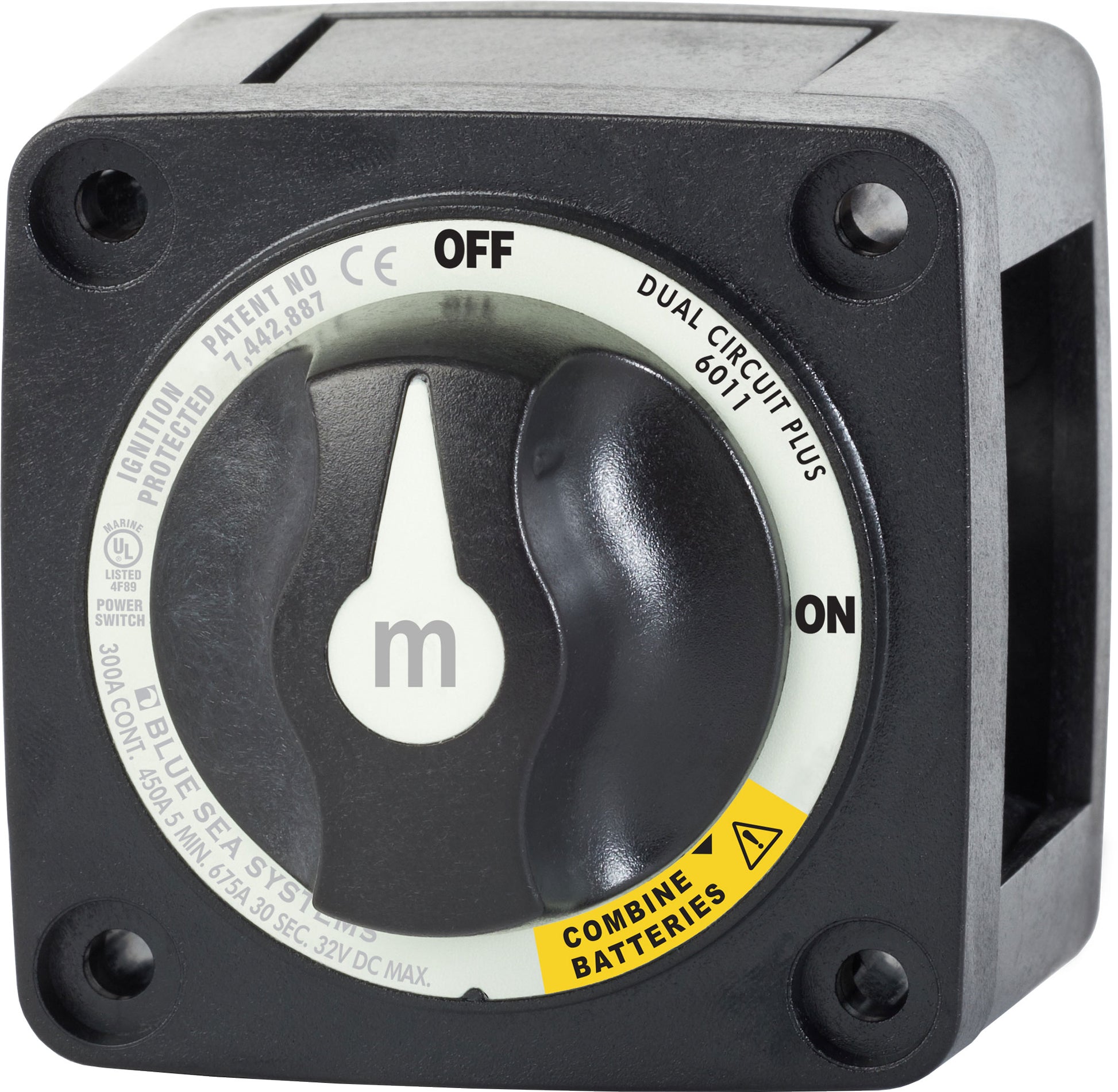

Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus Black
Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus Black
Regular price
$65.99 USD
Regular price
Sale price
$65.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Blue Sea Systems m-Series Mini Dual Circuit Plus Battery Switch - Black
Model: 6011200-BSS- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface or rear panel mounting
- Waterproof — rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Make before break contact design allows switching between battery banks without power interruption
Simultaneously switches two isolated battery banks or combines battery banks to all loads
Specifications| Switch Type | Dual Circuit Plus |
| Color | Black |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32vDC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 30 sec | 675A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
