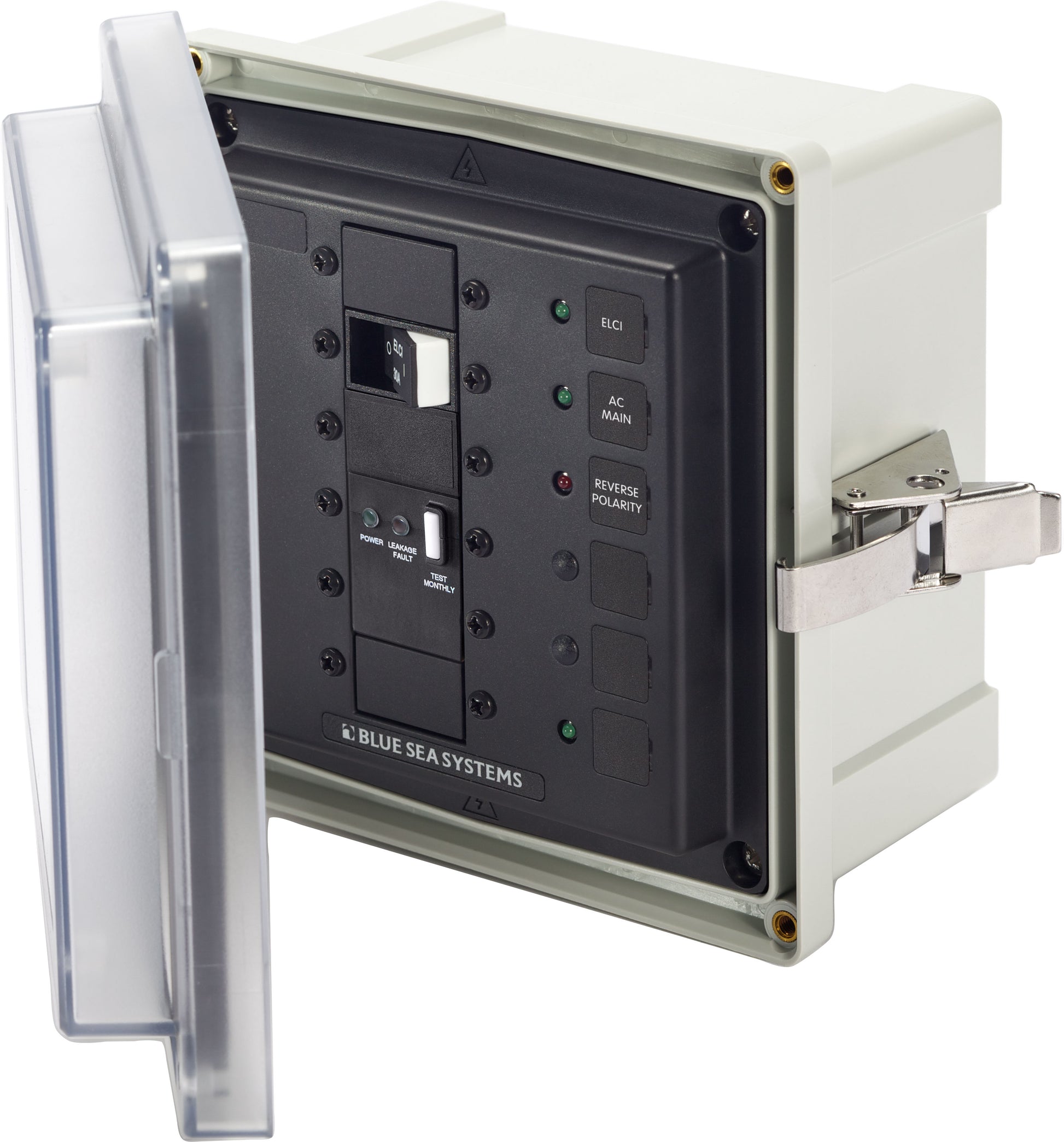

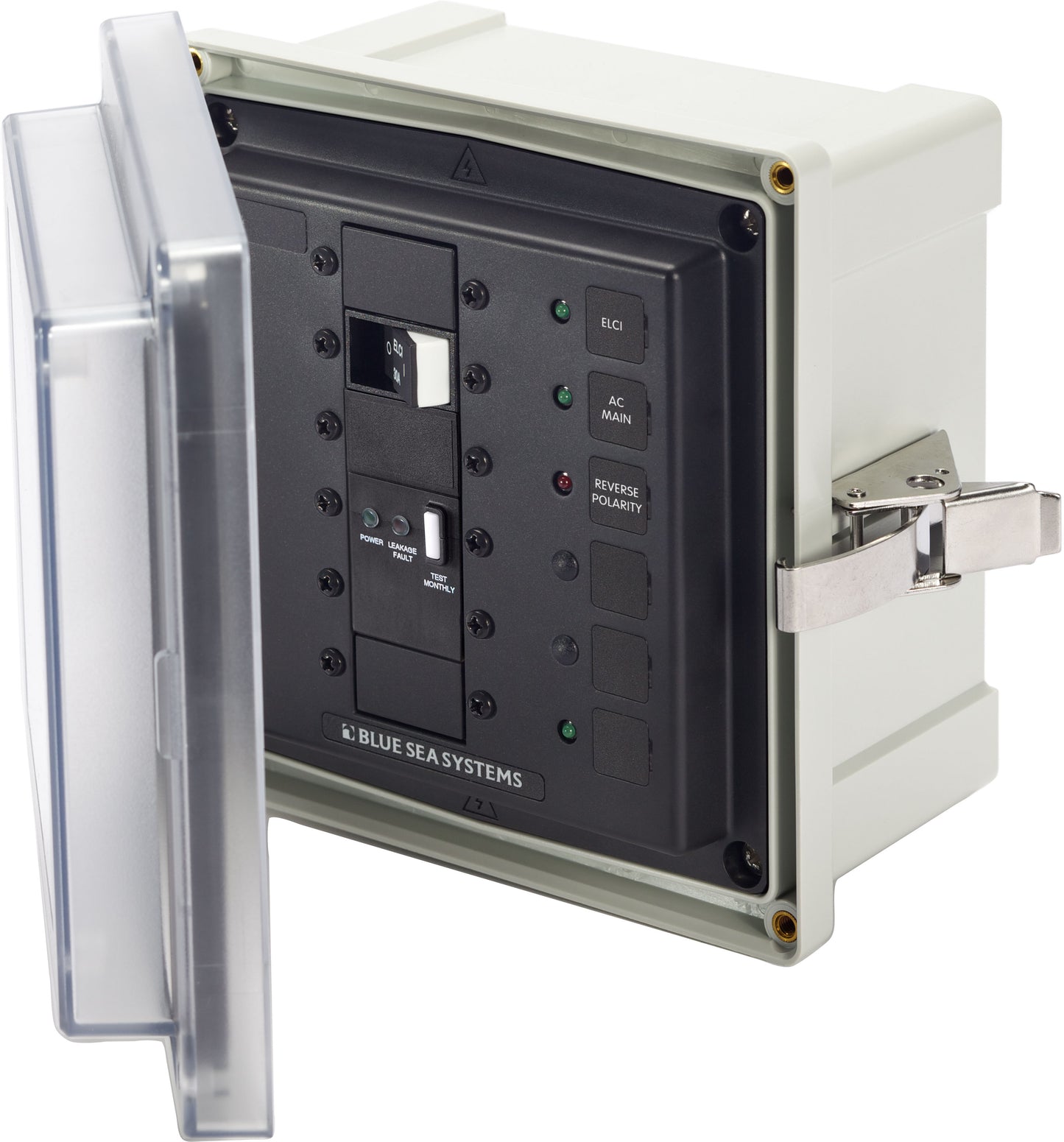

Blue Sea Panel Enclosure 120/240v AC 50A ELCI Main Surface Mount System

Blue Sea SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 blank circuit position

• Includes one 120/240V AC / 50A ELCI Main and one blank position
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

• SMS Panel Enclosure
• ELCI Main 120/240V, 50A, 30mA, 3104
• small wire glands, 3124 x 2
• medium wire gland, 3125
• large wire glands, 3126 x 2
• green "ON" indicating 120V AC LEDs, 8034 x 3
• red "Reverse Polarity" indicating 120V AC LED, 8066
• LED plugs x 3
• circuit breaker mounting screws x 12
• backlit circuit label positions x 4
• AC Main label
• Reverse Polarity label
• ELCI label
• Basic AC labels, 4206
• Panel Voltage ID label-120V/240V AC
