Blue Sea Systems

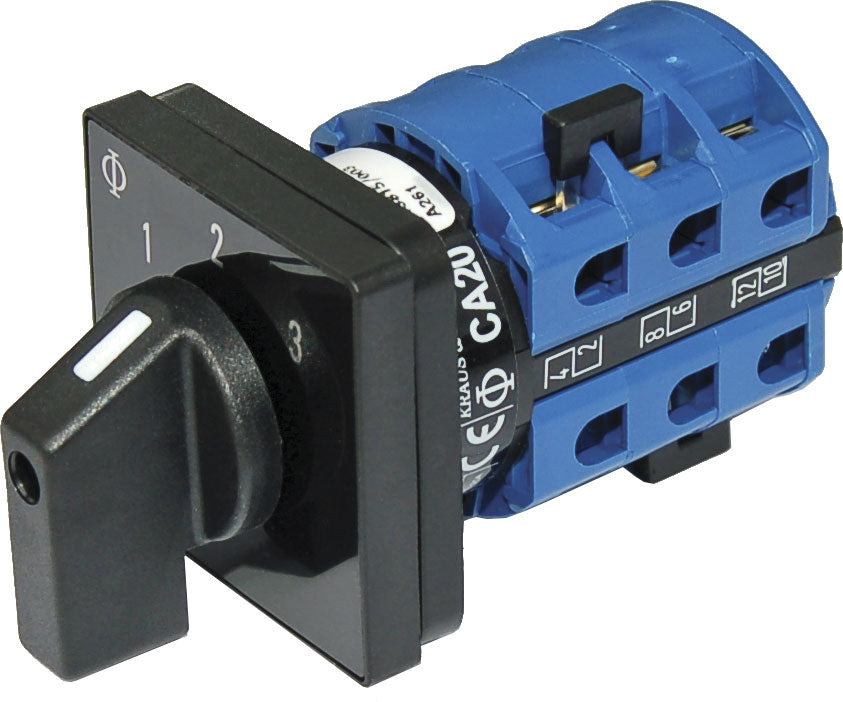

Blue Sea Rotary Switch 120VAC 30 Amp Off + 3 Position
Blue Sea Rotary Switch 120VAC 30 Amp Off + 3 Position
Regular price
$189.99 USD
Regular price
Sale price
$189.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Blue Sea Systems AC Rotary Switch - OFF + 3 Positions 120V AC 30A
Model: 9010-BSS- Switches 3 - 120 or 230 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16" (4.00mm) thick
- Mounts in panels up to 0.16" (4.00mm) thick
- Heavy duty industrial rated switch
- Intuitive function - One hand operation
- UL listed
| Positions | 3 + OFF |
| Source Selection | 3 |
| Nominal Voltage | 120v |
| Poles | 2 |
| Load Circuits Out | 1 |
| Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application. | 30A |
| Maximum Voltage | 600V AC |
| Source In | 3 |
| Dimensions hxwhd | 1.89in x 1.89in x 2.41in |
